EVA NEXUS™ | THE FUTURE OF OPHTHALMIC SURGERY
NEXUS Unites Inspiration & Innovation.

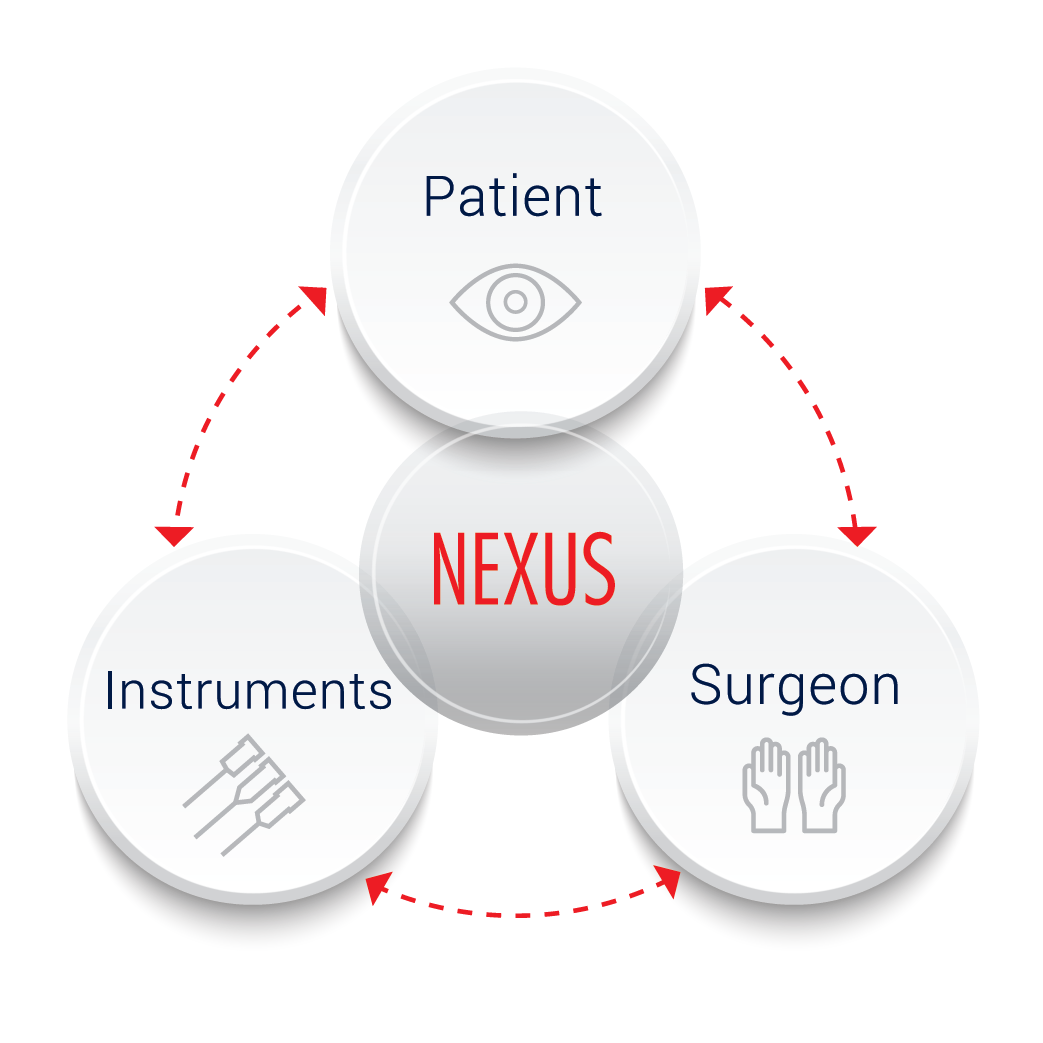

Creates a harmonious synergy between fluidics, instruments, surgeon and patient
Imagine a highly intelligent ophthalmic surgical system that’s so responsive, it unites surgeon’s intentions with the system - answering the needs of ophthalmic surgeons worldwide.
PERFORMANCE
Responsive technology platform based on the unique VacuFlow VTi technology.
CONTROL
More responsive with the fluidics and instruments designed to work together seamlessly.
STABILITY
Smart features achieve constant IOP during vitrectomy and improved anterior chamber stability.
NEXUS Fluidics: VACUFLOW VTI and SMART IOP™
VacuFlow VTi: Vacuum mode and Flow mode
Valve Timing Intelligence (VTi) pump drives smart fluidics and eliminates the risk of unwanted pulsations or flow, along with next-gen active infusion to achieve constant IOP during vitrectomy.
Vacuum mode: fast rise times and exceptional efficiency. Use vacuum mode for efficient vitreous removal, and to easily draw nucleus fragments to the tip
Flow mode: control the flow to 0.1 ml/min accuracy. Use flow mode for precise aspiration near a mobile retina, and for controlled removal of nucleus fragments
SMART IOP™ ensures constant IOP during surgery
With SMART IOP™ enabled, EVA NEXUS™ automatically compensates for pressure losses. The system adjusts the irrigation/infusion pressure to maintain a constant IOP during surgery and improved stability during procedures.
NEXUS Vitrectomy: EVA AVETA™ and TDC VELOCE™
EVA AVETA™ trocar cannula system
EVA AVETA™ is the first system to feature the patent-pending, Push-Fit infusion connection, plus a unique laser-etched retention feature. Benefits to surgeons and patients also include improved flow rates, a smaller working size and more stable intra-operative IOP.
TDC VELOCE with cut speed up to 20.000 CPM*
The next-generation high-speed cutter for EVA NEXUS enables SMART IOP. It unites performance, stability, control, and a new ergonomic design with increased shaft stiffness for ease of reaching the periphery and shaving the vitreous base.
Improved aspiration flow and increased stiffness
Cut speed up to 20.000 CPM*
SMART IOP for posterior surgery
*TDC VELOCE has a cut speed of up to 10.000 cpm and is designed to facilitate cutting tissue on the return of each stroke of the vitrectome, effectively doubling the cut speed
NEXUS LED Endoillumination
EVA NEXUS™ features a 3-port tunable system with yellow tinting for increased safe exposure times.
Range includes focal, shielded and TotalView wide field
All with illuminated depressor for visualization of the periphery
Optimal 8 lumen output for 27G surgery
Adjustable blended yellow light
User adjustable tissue contrast
Increased safety profile for extended or complicated cases
INICIO Microinjection system
EVA INICIO™: developed for EVA NEXUS™, the first approved ophthalmic microinjection system, offering improved precision and control for small volume aqueous fluid injections.
Precise delivery and control of microinjections
Pressure delivery of ±1 PSI
Full surgeon control.
NEXUS Phaco: EquiPhaco™ and SMART IOP™
EVA EquiPhaco™ for superior chamber stability and ultrasound efficiency, in conjunction with the NEXUS SMART IOP™ allows for more stable, lower anterior chamber pressure during procedures.
Smart features

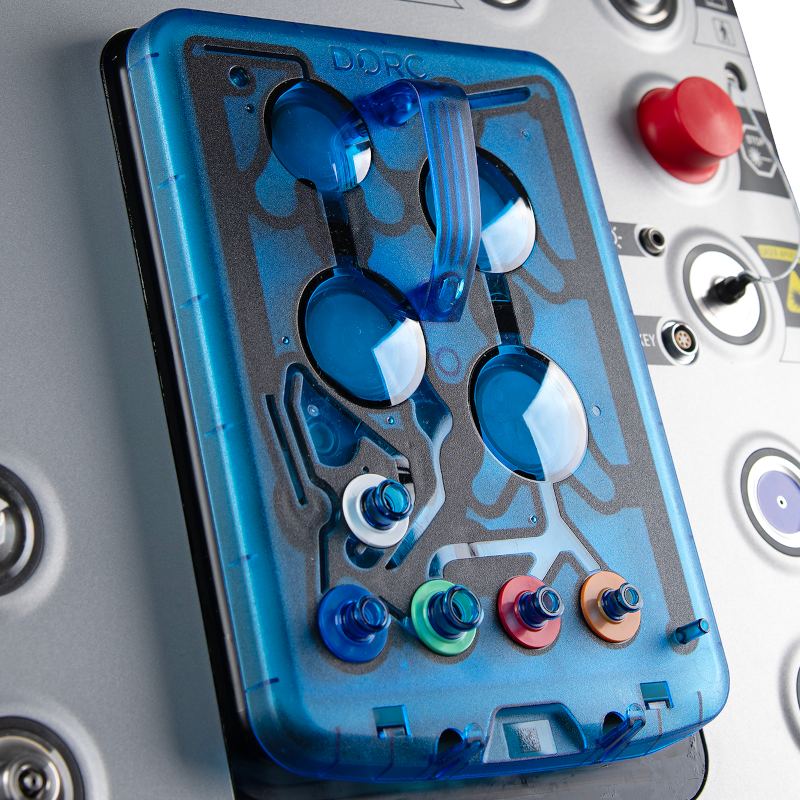

Universal cartridge for vitrectomy and phaco
An efficient, universal cartridge for vitrectomy or phaco procedures.

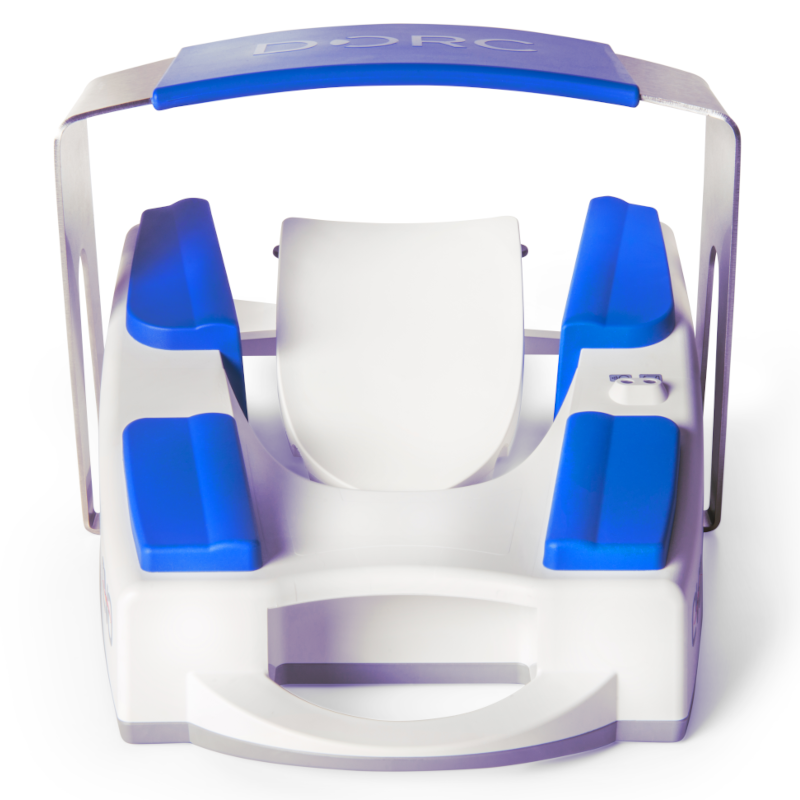

Wireless Dual Linear Footswitch
Customizable and programmable with independent control of aspiration and cutting with integrated laser.

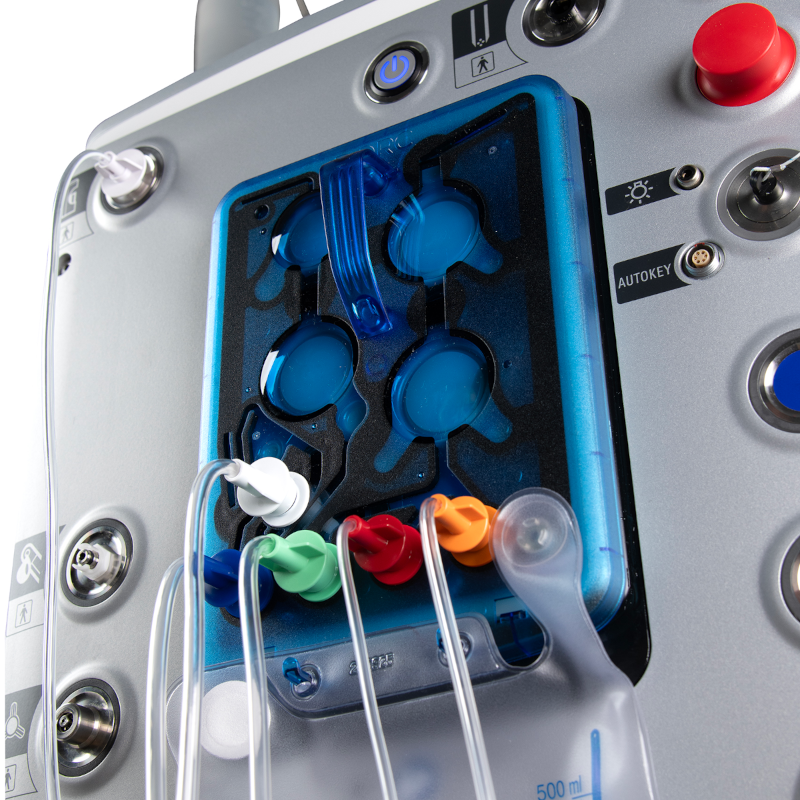

Dual Infusion and Irrigation Lines
Quick switching between anterior and posterior steps for on-demand dynamic response.
BSS management
New BSS management system suitable for bottles and bags, with 2-step low BSS level detection warnings.

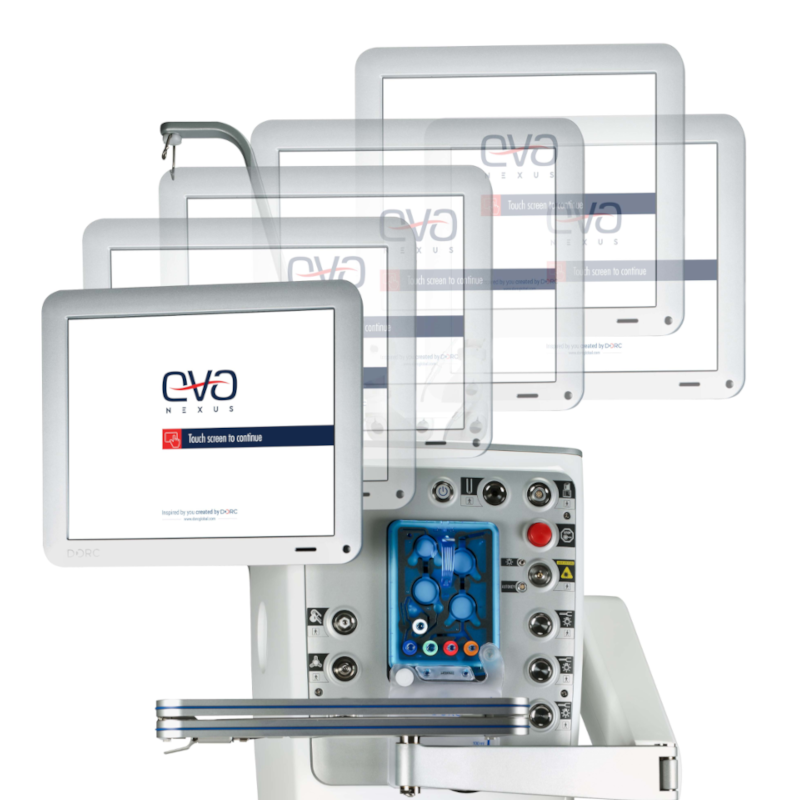

Adjustable screen
Adjustable touch screen monitor for ultimate ergonomic comfort and intuitive usability.
Digital Overlay
Surgical parameters can be overlaid on the surgical video and utilised as a teaching tool.
A wide range of combined, vitrectomy and custom nexus packs
Combined packs
Vitrectomy packs
